EENG 383

Lab 12 - Hall effect with MIDI

Lab:	12
Status	Live

InLab 12

Some self guided activities.

Lab 12 assignment

Create an embedded system that allows you to produce a consectutive MIDI piano notes of a song whenever the piano key is pressed. While the piano key is held down, sustain the note and when the piano key is released, the note should end. When the end of the song is reached, start over from the begining.

Software

I would advise you to write your program incrementally using the inLab code as a starting point. The main menu is a good starting point

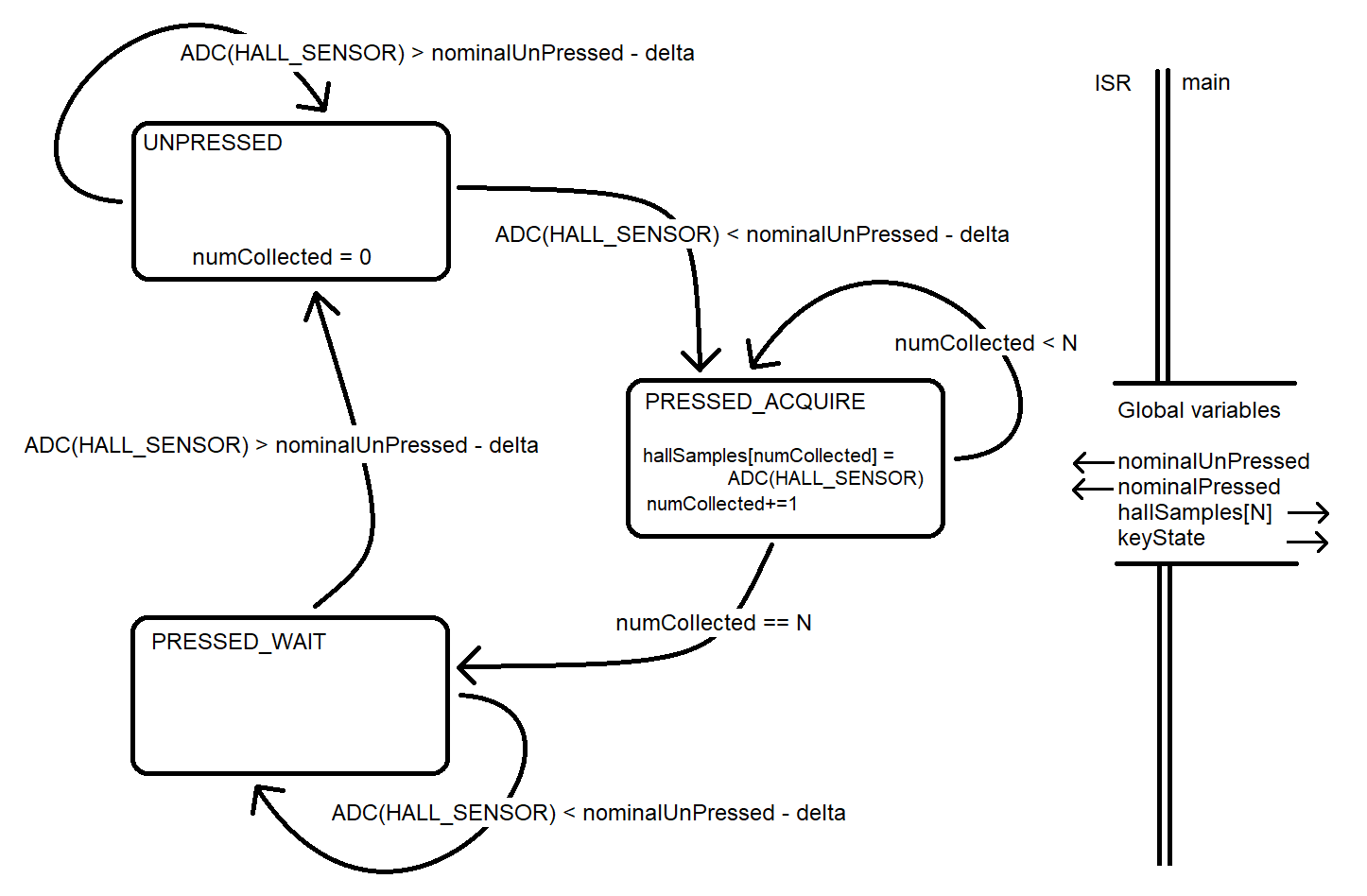

You program will rely on the timer 0 ISR to acquire Hall effect samples. I have diagramed the behavior of the ISR in the following state diagram, reference it in the following discussion.


The ISR is "called" every time that TMR0 rolls over. You should configure this to happen every millisecond. The ISR will use a combination of local, static and global variables to do its work. The diagram shows four key global variables and who read and writes their value by the direction of the arrow. The arrow leaving "nominalUnPressed" means that main writes this value and that the ISR reads this value.

At any given time, the ISR will be in one of three states, UNPRESSED, PRESSSED_ACQUIRE and PRESSED_WAIT. Regardless which state the ISR is in, just before exiting, the ISR should start a conversion so that it has a fresh ADC value when it next runs in one millisecond.

UNPRESSED

This state means that the piano key has not been pressed. In this state the ISR reads the Hall effect output through the ADC once every ISR call. If the Hall effect sensor value drops below (nominalUnPressed - delta) then the ISR chages the keyState to PRESSED_ACQUIRE and sets the number of ADC samples collected to 0.

PRESSED_ACQUIRE

This state means that the piano key is in the process of being pressed. In this state each ISR invocation stores one Hall effect output into the hallSample global array and increments the number of samples collected. After N invocations of the ISR in this state, the hallSamples array is full, so the ISR changes keyState to PRESSED_WAIT. The ISR needs to exit after acquiring one sample - do not include a for-loop in this section of the ISR that iterates N times and on each iteration acquires a sample and wait 1ms!

PRESSED_WAIT

This state means that the piano key has been pressed and has yet to be released. Evey ISR invocation in this state reads the Hall effect sensor output and checks if it has returned to its unpressed level. In otherwords, the Hall effect sensor output is greater or equal to nominalUnPressed - delta.

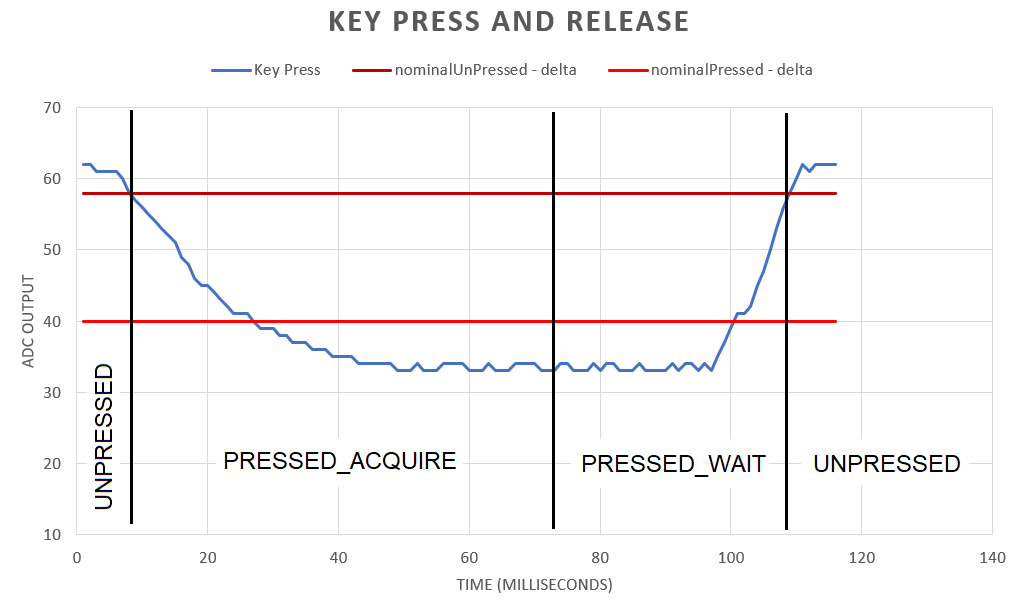

The image below shows an excel plot of a piano key press and release as the blue plot. The dark red horztional line is the value of nominalUnPressed - delta. The light red horztional line is the value of nominalPressed + delta. If the ISR were to see this key press event, its state would change as shown. Note that it takes 64 milliseconds to fill the hallSamples array in my program (64 samples taken at 1 millisecond intervals).


Main will be monitoring the keyState global variable. When this variable is equal to PRESSED_WAIT, then the hallSamples array is filled up. Let N be the length of the hallSamples array. Main should compute the velocity of the piano key press as follows.

• Find the index of the first entry in the hallSamples array that is less than nominalPressed + delta (light red line in the image above). Set the key strike velocity to 128 - index.
• If no such index exists (in other words no entry in the hallSamples array is less than nominalPRessed + delta) then set the key strike velocity to 128 - (N + (hallSamples[N-1] - (nominalPressed + delta)))

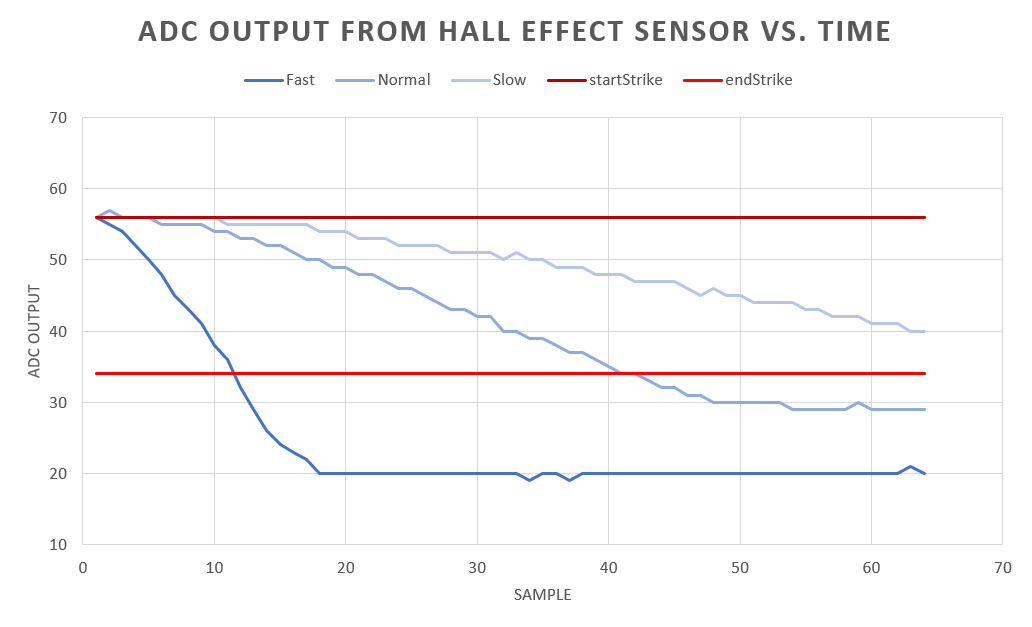

For example, in the image below:

• "Fast" piano keypress would have a velocity of about 128 - 12 = 116
• "Medium" piano keypress would have a velocity of about 128 - 41 = 87
• "Slow" piano keypress would have a velocity of about 128 - (64 + (40 - (34))) = 58

At start-up your program should present a splash screen - this would be a great place for some ascii art. The splash screen should also contain connection instruction for the development board; for this assignment tell the user there are no jumpers to install! When you press "?" at the terminal you should be greeted with the following menu. Oh, and you should run the terminal interface at 115,200 baud for quick bongo response time.

-------------------------------------------------
    Nominal 79 to 29
    delta = 5
    sampleRate = 2000us
-------------------------------------------------
?: help menu
o: k
Z: Reset processor.
z: Clear the terminal.
d/D: decrement/increment delta
c/C: calibrate unpressed/pressed hall sensor.
t: determine strike time with 64 samples, once every 2000us.
T: strike indicator and time
i: ISR values
M: enter into Midi mode.
-------------------------------------------------

• ?
  Prints out the ever useful help menu. Display the current upper and lower audio thresholds as part of the menu.


• o
  Returns "k" so that you know that the terminal is in working order.


• Z
  Reset the processor so that we can see that splash screen.


• z
  Clear the terminal using a bunch of new lines.


• d/D
  Lower case "d" decrements and upper case increments the value of delta. Delta represents the margin below the nominalHallUnPressed, and margin above nominalHallPressed that represent the start and end of the key press respectively. This is a carry-over from the inLab code and gives you the ability to calibrate your sensor should you want to.


• c/C
  Lower case "c" reads the otput of the Hall effect sensor when the key is not pressed and stores this value into nominalHallUnPressed. Upper case "C" reads the otput of the Hall effect sensor when the key is pressed and stores this value into nominalHallPressed. This is a carry-over from the inLab code and allows you to compensate for any changes in mechanical operation of your piano key since the time you wrote your code.
• t
  The "t" function asks the user to press a key and then waits until keyState to equal PRESSED_WAIT. When it does, print out all N entries of the hallSamples array along with the key strike velocity then exits. The following is an example of the output.

  Tap the piano key.
    73   73   73   73   73   73   73   72   72   72   72   72   72   72   71   71   71   71   70   70   70   70   70   70   69   69   69   69   69   68   68   68   68   67   67   67   67   66   66   66   66   65   65   64   64   64   63   63   63   62   62   62   61   61   60   60   59   59   58   58   57   57   57   56
  Strike velocity = 32


• T
  The "T" function prompts the user to press the piano key or a keyboard keyi to exit. To do this monitor the EUSART1_DataReady flag and the keyState global variable. If keyState changes to PRESSED_WAIT, the hallSamples array is filled with data so print the key strike velocity. When keyState changes back to UNPRESSED, print a message that the key has been released. Continue to print key press information until the user presses a key on their keyboard causing EUSART1_DataReady to equal true. The following is an example of the output.

  Tap piano key and press keyboard key to exit.
  Strike velocity = 115    released.
  Strike velocity = 112    released.
  Strike velocity = 78    released.
  Strike velocity = 70    released.


• i
  All this function does is print out all N values in the hallSamples array. I added this function to my program because I though my ISR was doing weird things and wanted to see what it was up to.
• M
  This is what the assignment works toward. Actually this function is a combination of the "M" function provided to you in the inLab code along with the "T" function described above. This function should monitor the keyState global and when it is equal to PRESSED_WAIT, calculate the keyStrike velocity. Next send a "noteOn(PLAYNOTE, song[songIndex], strikeVelocity);" command then wait for keyState to change to UNPRESSED and then send a "noteOn(NOTEOFF, song[songIndex], strikeVelocity);" command. After this increment songIndex so that the next piano key press plays the next note in your song.

  Turn-in

  You may work with a single partner (or alone) to complete this lab. Submit your main.c file on Canvas using the instructions posted there. You should take note of the Rubric that will be used to evaluate your assignment. Please form a group before submitting using the instructions posted on Canvas. You will demonstrate your code at the beginning of lab.
